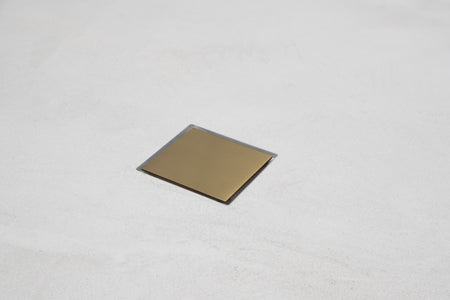

Liquid Quattro 100 Brass

[[intro]] Linear shower drain [[introend]] Tight shower drainOnly 30mm wideLOW = 31 L/min and only 54 mm installation heightPRO = 40 L/min and only 78 mm installation heightAll-in-one package5 grid lengths 60, 70, 80, 90 or 100 cmAdjustable grid for floors from 8 mm to 43 mmAvailable in 11 colours10 year warranty Cayman is the youngest member of the Carrodrain family. The minimalism of this discrete powerhouse is reminiscent of the techniques the caiman uses in nature: floating below the water surface quasi-invisibly, but always ready for top performance. The design was inspired by the Carrodrain Classic, Carrodrain’s very first shower drain from 2009. Underneath, the Cayman uses the latest technology of the Carrodrain Twiggi, however. Due to the smart production method of the grate, the Carrodrain Cayman is always economically priced. Technical info The Cayman shower drain is available in five lengths: 60, 70, 80, 90 or 100 cm grate length. The gross installation size is always 10 cm longer, due to the Kerlox waterproof edge around it. Every Cayman is available in 11 colours. Belgian top design at a great price. The Cayman, just like the Twiggi, comes in a complete installation package. With its drainage rate of 31 litres per minute in an installation height of barely 62 mm – including the grate – the Carrodrain Cayman is truly unique in its kind! Waterproof with Kerlox Combine Cayman with Kerlox for a watertight result. Kerlox is a flexible waterproofing membrane for walls and floors in bathrooms. Kerlox is produced with thermoplastic polyolefin EVAC, reinforced on both sides with a layer of non-woven polypropylene (PP) fibres for perfect adhesion to cementitious tile glues. Polyolefin EVAC is a thermally stable and high quality synthetic, which is odourless and non-porous. [[downloads]] Technical datasheet Instruction manual Maintenance file Color matching BIM Logo Installation video Catalog [[downloadsend]]

[[intro]] Flexible waterproofing membrane for wall and floor [[introend]] Waterproof membrane 120 cm wide roll Easy to glue with tile glue Extremely flexible and strong 10-year warranty Kerlox is a flexible waterproofing membrane for walls and floors in bathrooms. Kerlox is produced with a base of thermoplastic polyolefin EVAC, reinforced double-sided with a layer of non-woven polypropylene (PP) fibres for perfect adhesion to cement-based tile glues. Polyolefin EVAC is a thermally stable and high-quality plastic that is odourless and not porous. Polyolefin EVAC is also recyclable and therefore more environmentally friendly than many other plastics. In addition, Polyolefin EVAC is more elastic and stronger than polyethylene (PE), with was often used in waterproofing cloths of the previous generation. [[downloads]] Technical datasheet [[downloadsend]]

[[intro]] Linkable and extendible-) wall to wall [[introend]] Wall-to-Wall shower drainExtra narrow grille 30 mm wideLinkable and extendableLOW = 31 L/min and installation height 54 mmPRO = 40 L/min and installation height 78 mmAdjustable grid for floors from 4 mm to 43 mmAll-in-one package70-100cm, 80-110cm or 100-160cmAvailable in 11 colours10 year warranty With the three available total packages you can run the Twiggi perfectly from wall to wall in any shower. Even corner connections can be made as standard with the Twiggi system. The low installation height of only 54 mm and the enormous discharge rate of 31 litres per minute make the Twiggi a real passe-partout. Ground-breaking technology The technology of the Carrodrain Twiggi is particularly ground-breaking. No fewer than three patents have been granted to this unique shower drain: unique waterproofing system (patent n° BE 1018522), extendable and linkable grating (patent n° BE 1023701) and revolutionary siphon technology (patent n° BE 1022376). Wall-2-Wall The "Wall-2-Wall" system allows you to extend the Twiggi from wall to wall in any setup. With the Carrodrain Twiggi you get an adapted stainless steel grating extension so that you can visually adjust the grating length to the recess size of your shower. The Twiggi XXS and XS comes standard with an extension piece of 30 cm so that it fits seamlessly into any shower cubicle between 70 and 100 cm (XXS), 80 and 110 cm (XS). The Twiggi XL comes with a stainless steel extension of 60 cm, so you can create a wall-to-wall shower grate from 100 to 160 cm. The Twiggi's XL, XS and XXS can also be connected to each other. Thanks to this smart system of extensibility and linkability, you can really run any Twiggi from wall to wall! Waterproof with Kerlox Combine Twiggi with Kerlox to ensure waterproofing. Kerlox is a flexible waterproofing membrane for walls and floors in bathrooms. Kerlox is produced with a base of thermoplastic polyolefin EVAC, reinforced double-sided with a layer of non-woven polypropylene (PP) fibres for perfect adhesion to cement-based tile glues. Polyolefin EVAC is a thermally stable and high-quality plastic that is odourless and not porous. Technical info The Twiggi can be extended and linked. You will never have to cut your tiles diagonally to let the floor slope to the shower drain. With a Twiggi, your entire shower floor will be one unit! Suitable for all types of floor finishing: natural stone, ceramic, mosaic, epoxy and cast floors. [[downloads]] Technical datasheet Instruction manual Maintenance file Color matching BIM Logo Description of specifications Installation video Catalog [[downloadsend]]

[[intro]] The shower drain for every cast floor [[introend]] Tight shower drain for cast floors Only 20mm wide LOW = 31 L/min and installation height 58 mm PRO = 40 L/min and installation height 82 mm All-in-one package 5 grid lengths 60, 70, 80, 90 or 100 cm Adjustable grid from 3 mm to 43 mm Available in 11 colours 10 year warranty With a width of only 20 mm, Carrodrain Liquid is by far the narrowest shower drain for cast floors. A minimalist and discreet design available in 5 lengths: 60, 70, 80, 90 and 100 cm. Each Liquid is available from stock in 11 standard colours. Would you like to colour the inlay grate in the colour of your cast floor? That is entirely possible. The grate in 'White Epoxy' lends itself perfectly as a base for your finishing colour. The stainless steel grate was blasted in advance and provided with a robust epoxy coating of maritime quality.   [[downloads]] Technical datasheet (LOW) Technical datasheet (PRO) Instruction manual Maintenance file Color matching Logo Description of specifications Installation video BIM Catalog [[downloadsend]]

[[intro]] Tileable linear shower drain [[introend]] Tileable liniair shower drainOnly 27mm wideLOW = 31 L/min and installation height 55 mmPRO = 40 L/min and installation height 79 mmAll-in-one package5 grid lengths 60, 70, 80, 90 or 100 cmTileable gridGrille height adjustable from 1 mm to 43 mmFor floors from 3 mm to 30 mm thick10 year warranty Less is more. Carrodrain’s latest shower drain is literally Invisible! Carrodrain Invisible is the ultimate drain for any interior designer. All technical elements of this shower drain are invisible yet easily accessible for easy maintenance. Are you working with a marble, tile or Mortex floor finish? Then Invisible is the perfect solution for your walk-in shower. Thanks to the extra low installation height of only 55 mm excluding floor finish, Carrodrain Invisible is also very suitable for renovation projects. Technical info With Carrodrain Invisible, your floor finish steals the show. All the technology and all the metal parts of the shower channel are completely invisible. After installation, only a 3mm groove remains visible around the tile strip. It doesn’t get any more discreet or elegant than this. The total package of Carrodrain Invisible is available in 5 sizes: 60 cm, 70 cm, 80 cm 90 cm and 100 cm grate length. The tileable grid is barely 27mm wide and infinitely adjustable in height. Waterproof with Kerlox Combine Liquid with Kerlox for a watertight result. Kerlox is a flexible waterproofing membrane for walls and floors in bathrooms. Kerlox is produced with thermoplastic polyolefin EVAC, reinforced on both sides with a layer of non-woven polypropylene (PP) fibres for perfect adhesion to cementitious tile glues. Polyolefin EVAC is a thermally stable and high quality synthetic, which is odourless and non-porous. [[downloads]] Instruction Manual Maintenance file Technical Specifications Color matching Installation video BIM Logo Catalog [[downloadsend]]
